Asymptotic Gridshell

Project details

Programme

Minimal surfaces have a constant zero mean curvature throughout its shape. This is due to the functional relationship between its two principal curvatures. It allows for a generation of asymptotic curves on these surfaces, resulting in zero normal curvature. As a result, these structures can be assembled as flat grid-shells on the ground and then can be bent to shape by applying force at designated points.

Vital Steps in Generating an Asymptotic Gridshell

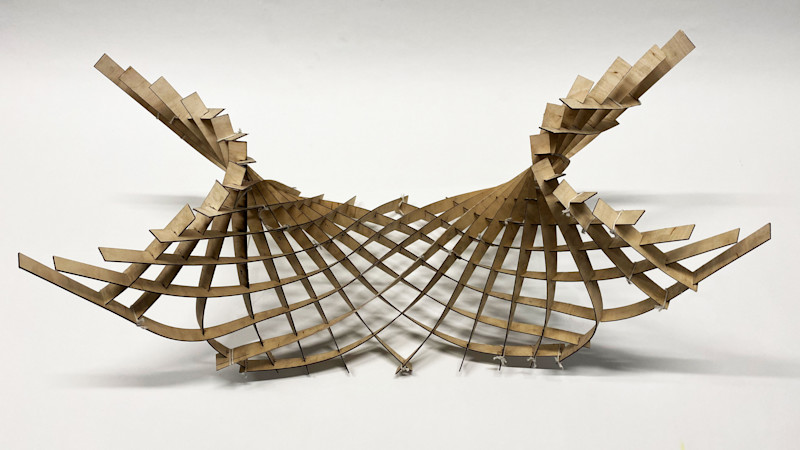

A Closer View of the Gridshell

Lower Part of the Geometry

Geometry as Seen Upside Down Resembles an Arch

The Bending of Individual Strips in the Normal Direction

Stages of Fabrication

The two prototypes indicates the progress made on realization of certain objectives that are subjective to the input geometry. Also, the flat state and the final state of the geometry is seen.
