Dynamic Relaxation Pavillion

Project details

Programme

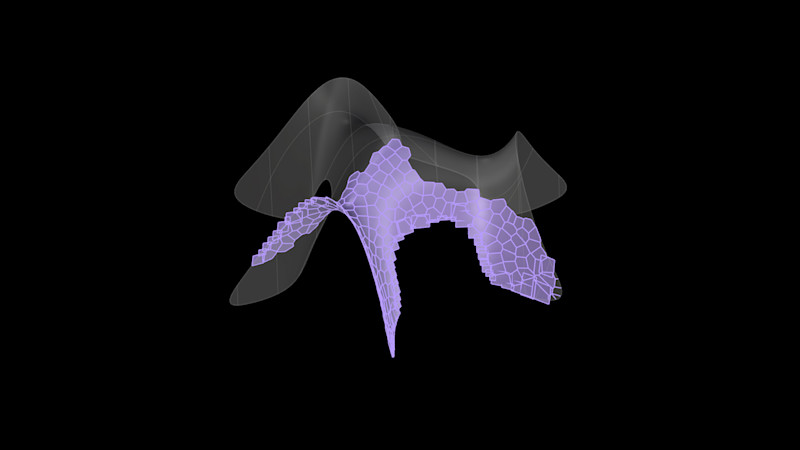

Dynamic Relaxation Pavillion is focused on form finding with discrete elements and mainly based on the particle spring system algorithm. The whole element system is balanced by controling the relationships between each group of vertices and discrete elements. This methodology is then applied to minimal surface geometry, which efficiently produces homogeneous panel segments to generate a pavilion.

Pseudo Code

Subdivide the curve and collect the nodes at the centre.

Algorithm

Adaptive subdivision algorithm & particle spring system.

Result

The growth curve has a high potential to be grilles or the structure. The plane panel has a high value in economic area.
